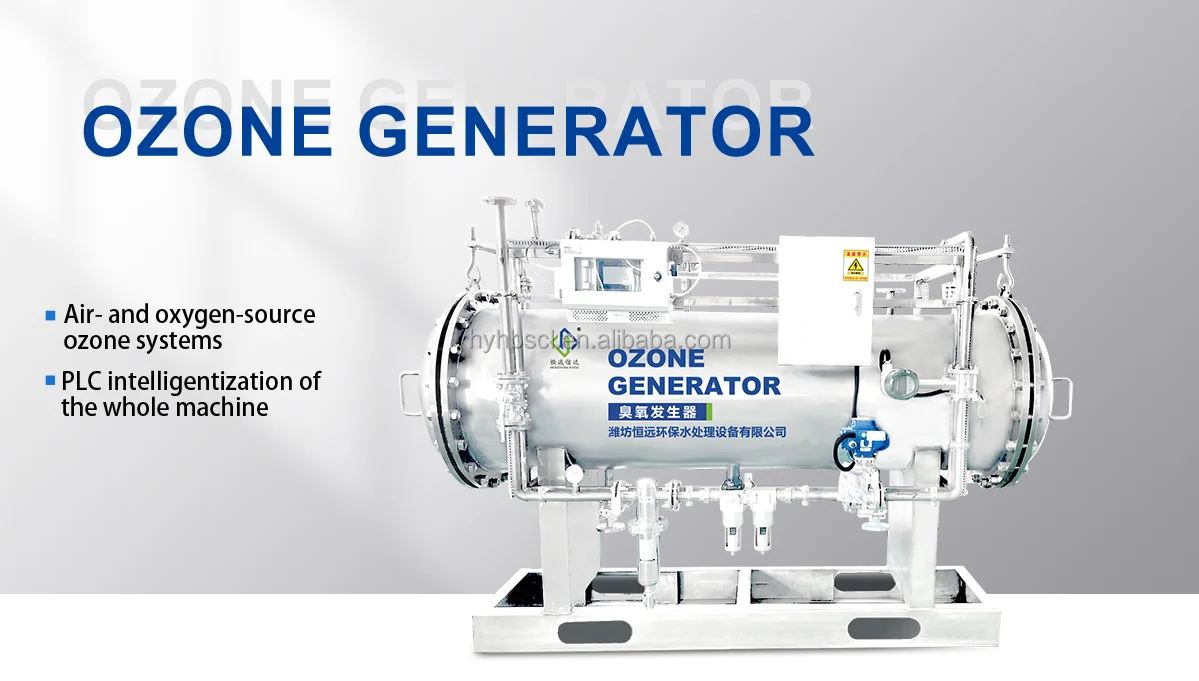

Large Big Ozone Generator

Hengyuan large-scale ozone generator system is a high-quality product made by our company by applying the advanced ozone generating technology in the ozone industry at home and abroad and refi ning it with great care. The whole system is composed of gas source pre-treatment system, ozone generation system, ozone power supply system, central control system and ozone gas application system. At present, the ozone output of our single machine is 0.2-100kg/h, and the concentration of ozone export can reach 20-150mg/L. Compared with other large-scale ozone equipments in China, it has the features of compact structure, small surface area, stable ozone operation and low cost of use.

Large ozone generator preparation principle is the gap discharge method, the power supply unit to provide a high-voltage electric fi eld and make the fl ow of oxygen through the ozone generator in this electric fi eld. Ozone generator tank itself and the internal discharge chamber for the grounding pole, high-voltage electricity added to the insulators metal electrodes, metal electrodes added to the outside of the insulating material, so that in the insulating material layer and the ozone generator tank between the grounding pole to form a high-voltage electric fi eld, the oxygen through the high-voltage corona discharge is converted into ozone.

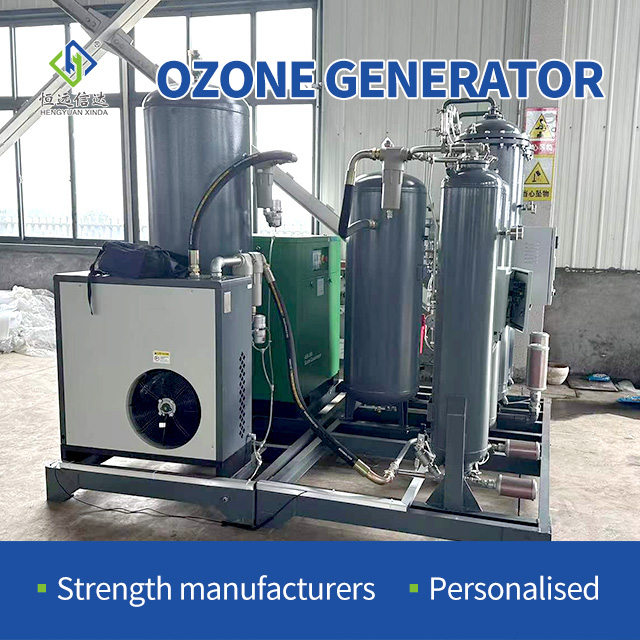

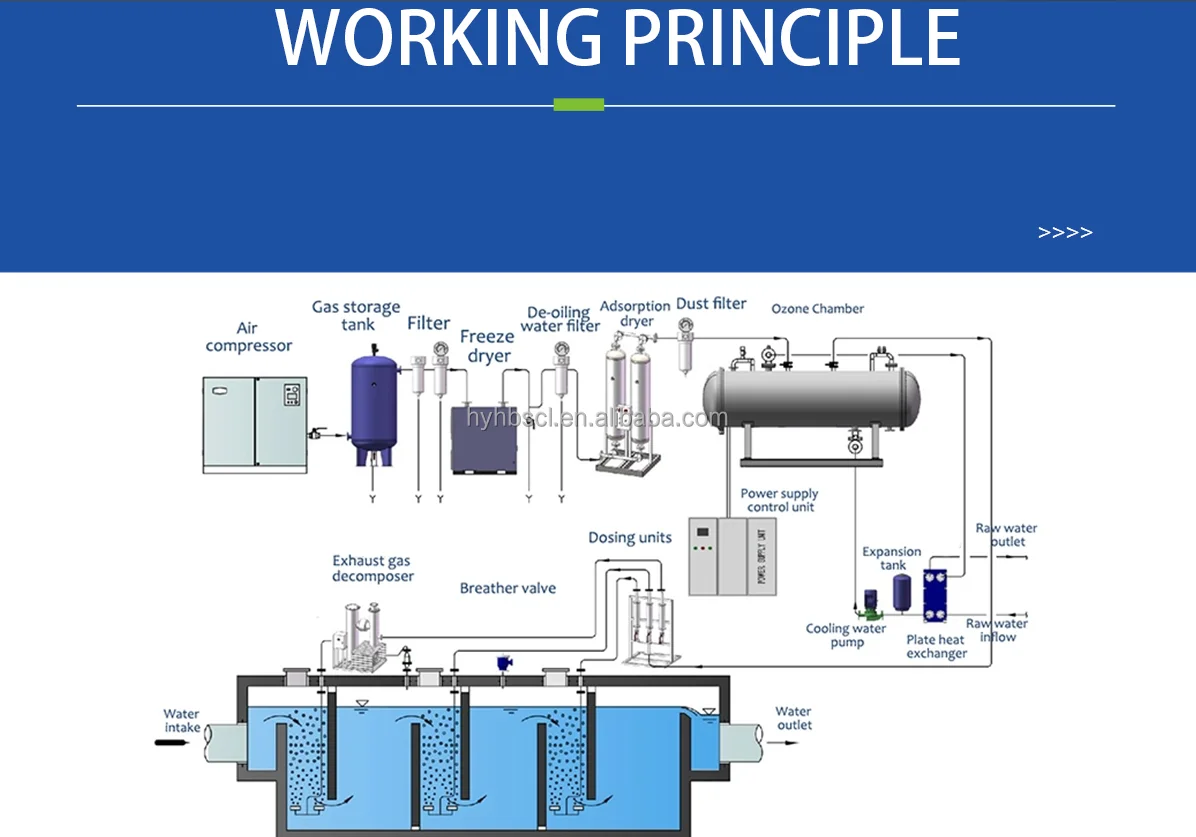

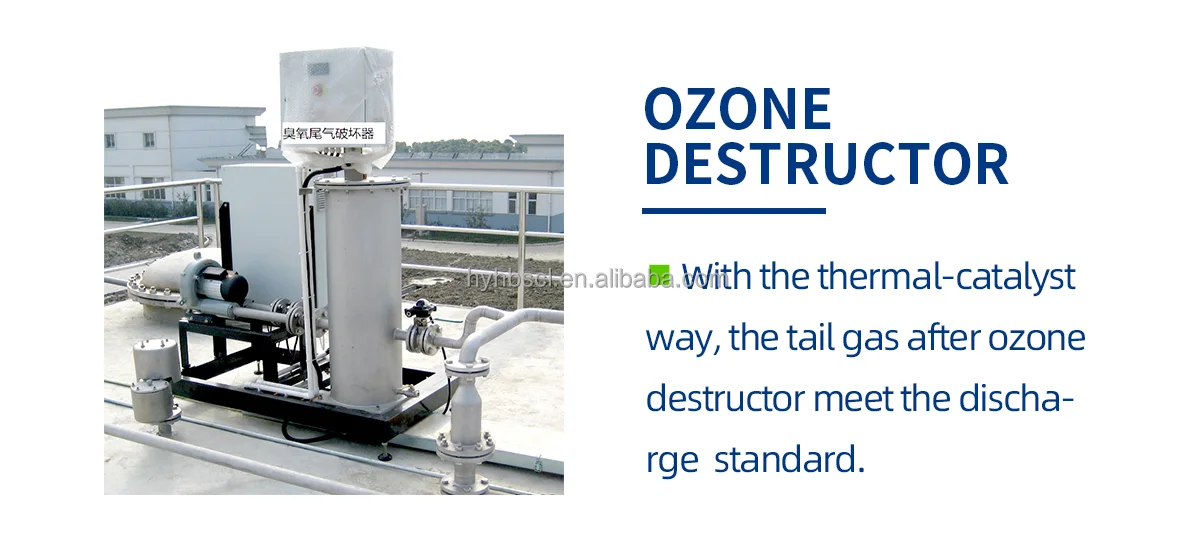

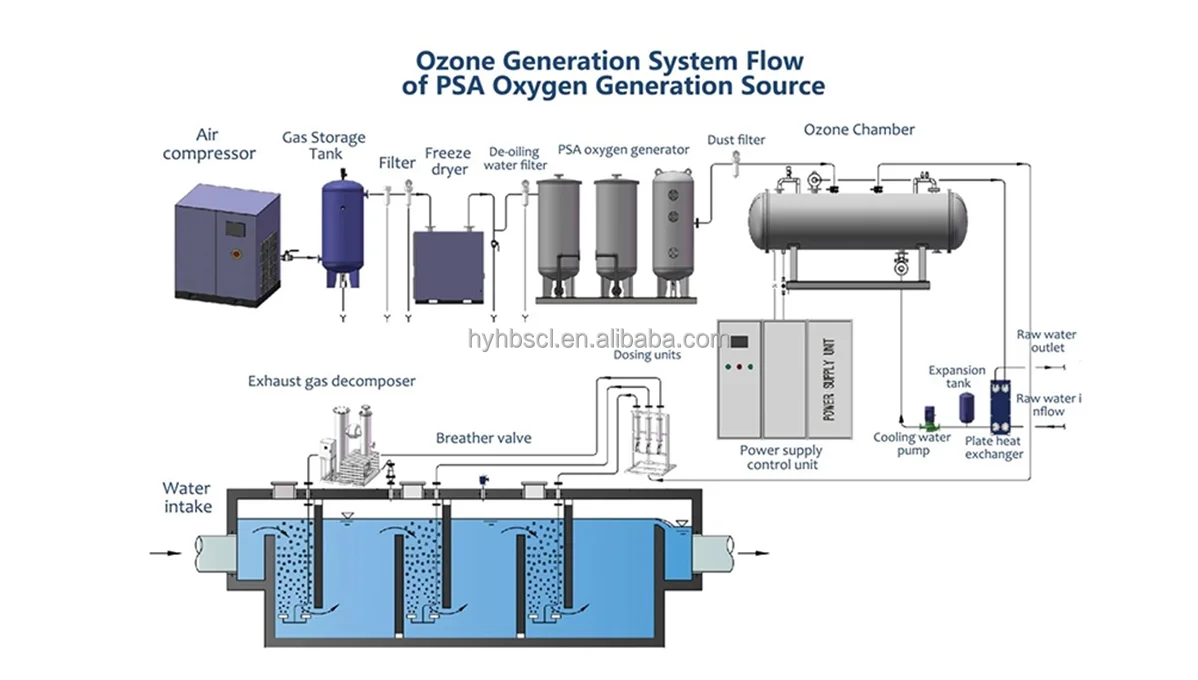

Hengyuan xinda brand ozone generator application system is a complete ozone application system composed of gas source supply system, gas source treatment system, gas source quality inspection system, gas source pressure adjustment, flow control distribution system, ozone electrode, ozone power supply, ozone transformer, ozone discharge chamber, ozone cooling system, ozone production inspection and control system, ozone intelligent control cabinet and ozone distribution system, ozone dosage system and ozone exhaust collection and treatment.

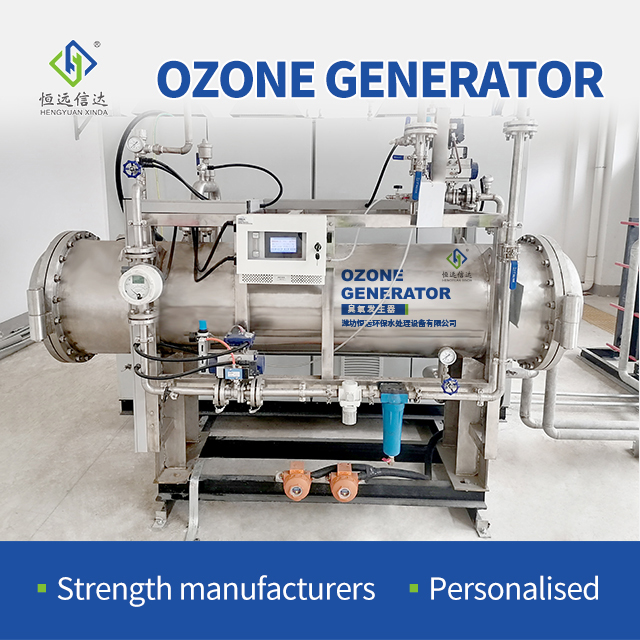

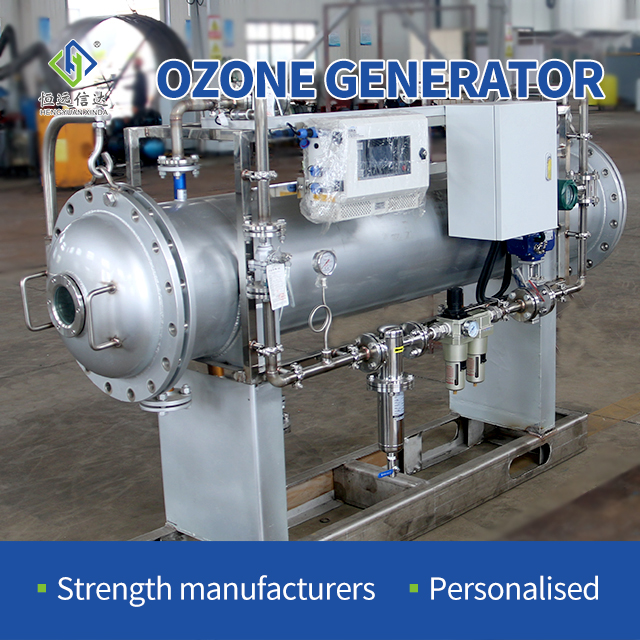

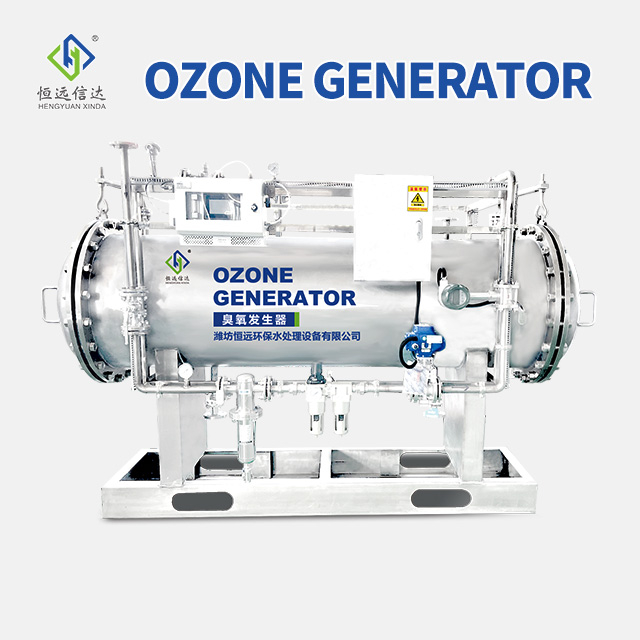

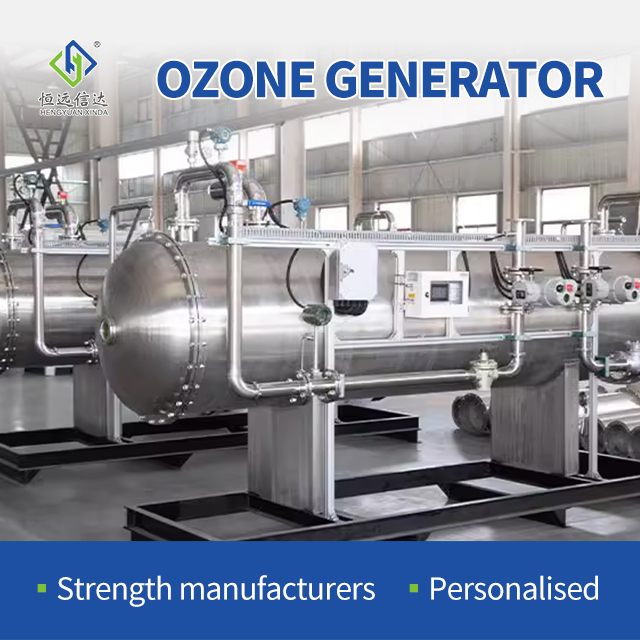

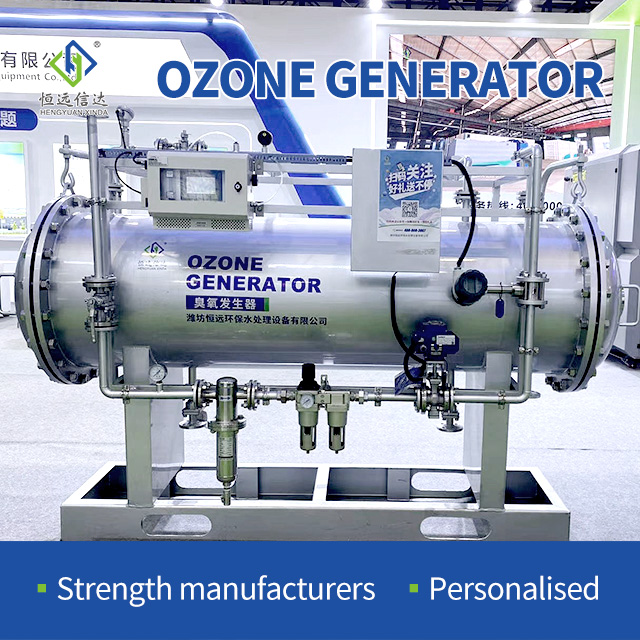

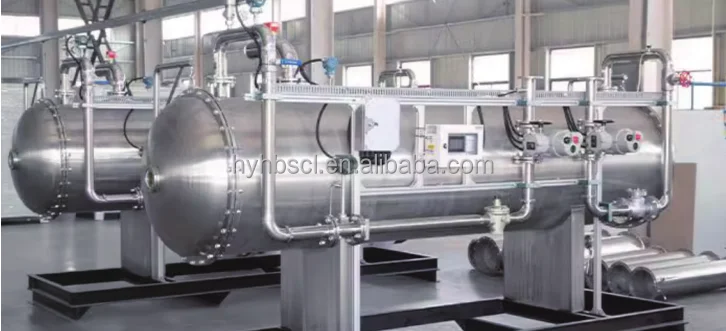

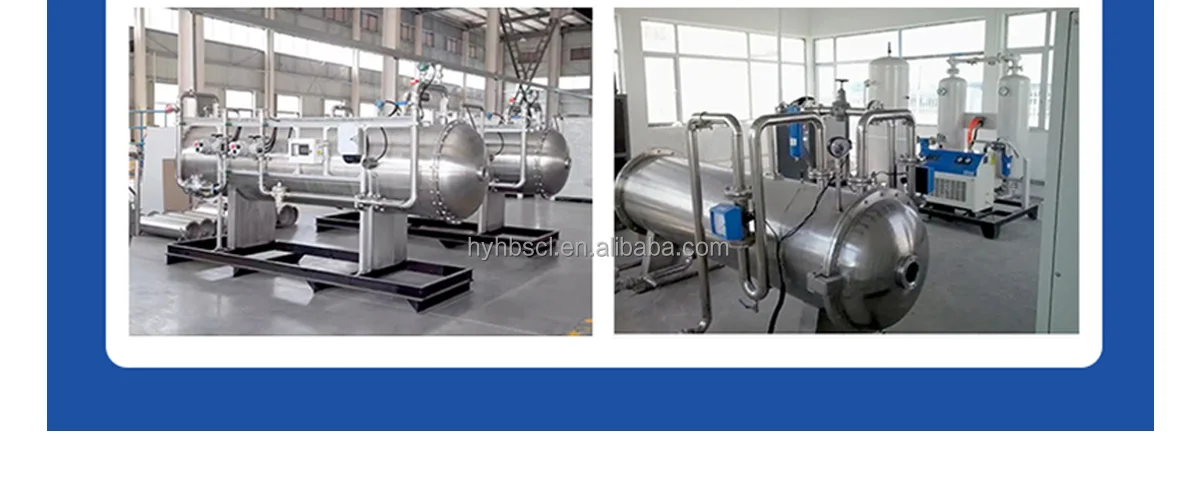

Hengyuan xinda large-scale ozone generator room is installed horizontally, which can be directly
placed in the room, or installed on the foundation fi xed frame. The inside of the ozone generator
can be inspected and maintained through the sealing plate with observation holes at both ends.
The service life of the ozone discharge chamber reaches more than 10 years;
High-voltage discharge special technology, targeted and adaptable, high ozone concentration, high
yield; micro-gap high-effi ciency and high-concentration discharge technology, reducing the cost of use.
Imported high boron glass and enamel discharge tube has high strength itself, excellent heat resistance, pressure resistance, self-cleaning performance, and convenient maintenance; PLC automatic control technology, ozone production 10-100% adjustable, equipment with current, voltage, temperature, fl ow, gas pressure, operating conditions and a series of operational monitoring and protection functions, equipment performance is more stable, longer life.

 Municipal tap water deep treatment, sewage treatment, water reuse treatment, chemical oxidation synthesis, pulp bleaching, waste gas, waste water treatment; industrial cooling water treatment, swimming pool, landscape water treatment; pharmaceutical, food industry and other fields.

1. Q:Are you a factory or trading company?
A: HengYuan are a direct factory, we have rich experiences for manufacturing water treatment plants for more than 14 years.
2. Q:Where is your factory ? How can i visit there?
A: HengYuan factory is located in No.888 Leshan Road, Weicheng District, Weifang City, Shandong Province, China. It is about 2 hours from Qingdao airport. We can pick you up if you need, welcome to visit our factory.
3. Q: Do you have minimum order quantity request?
A: No minimum order, but it can get a discount if you order a large quantity.
4. Q: Do you have certificates?
A: Yes, we have ISO certificate.
5. Q: Can you meet my special requirements for my products?
A: Yes, we have a professional design team. Drawings can be provided according to your requirements.
6. Q:How do I buy your products?
A:You can provide us your water sources, water quality, flow rate and ground area (contact us for more details).
7. Q:How do I pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit of total valus by TT after signing the PI, 70% balance to be paid by TT before shipment..
8. Q:What is the delivery time?
A: It would largely depend on the quantity of order and the item you want.. Generally speaking, the delivery time will be within 4 to 6 weeks.
9. Q: How do you pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.
10. Q: How do you manufacture your equipment ?
A:Our machining technology includes laser/plasma cutting, automatic welding, CNC cutting and bending.
11. Q:How do we install after the equipment arriving destination?
A: Detailed installation drawing can be provided for you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
