HY
hengyuan

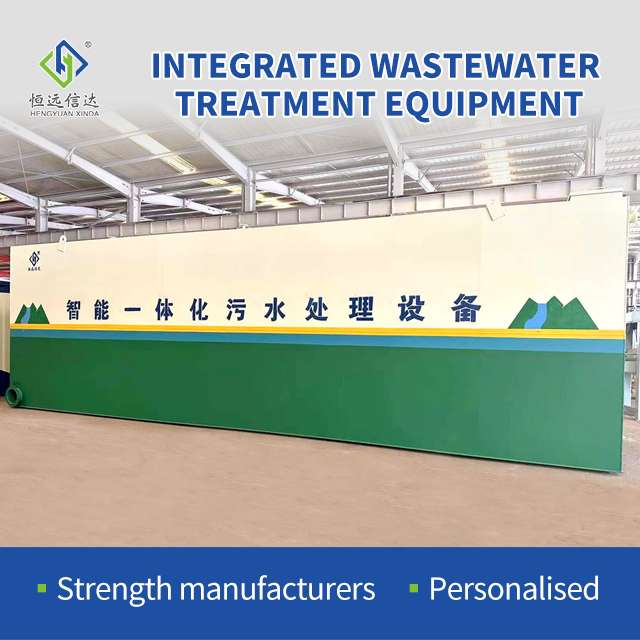

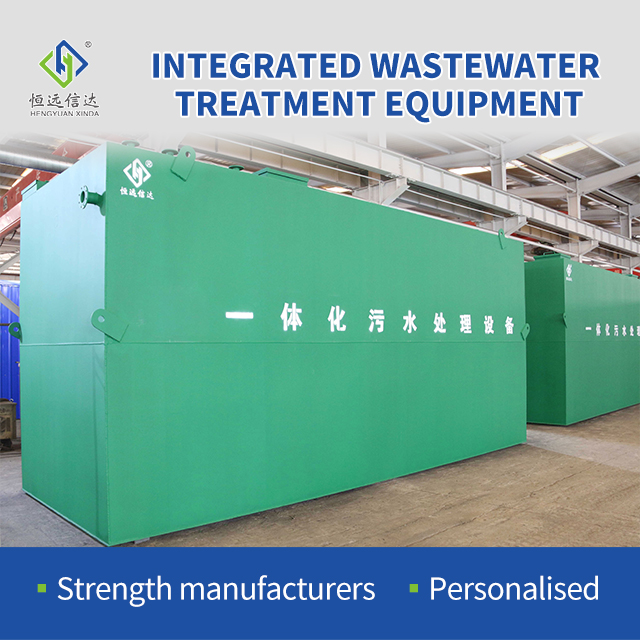

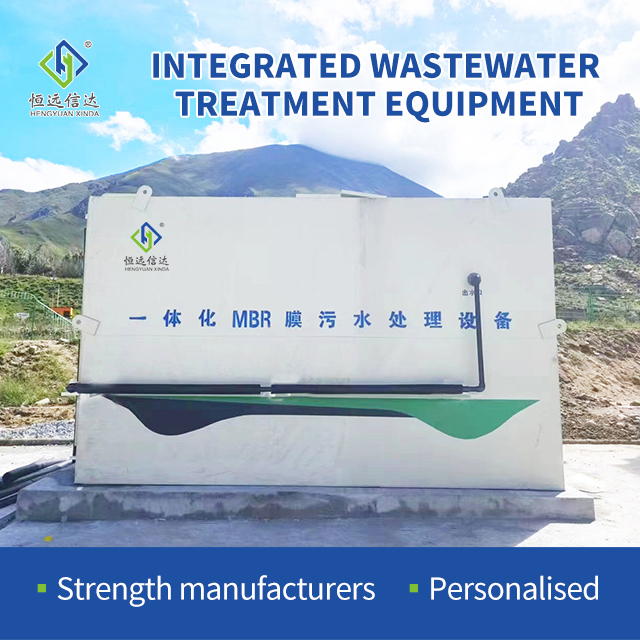

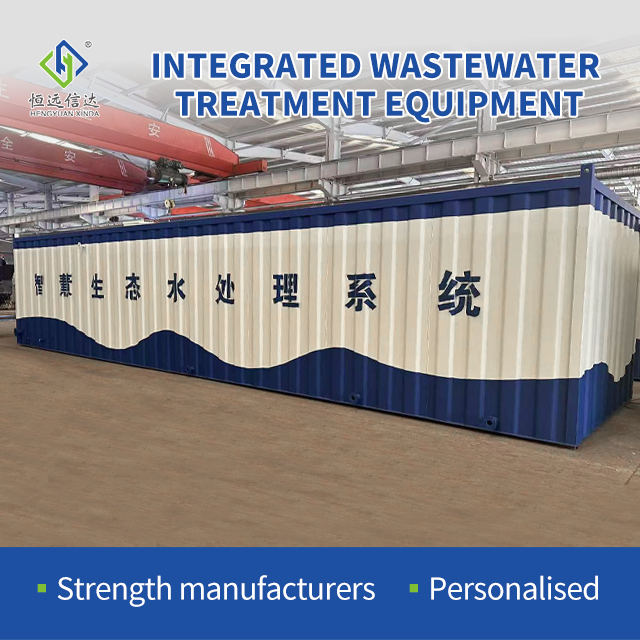

Integrated sewage treatment equipment can effectively remove organic pollutants in water, equipment combined with water quality and quantity of comprehensive design, commonly used treatment processes include AO, MBR, MBBR, SBR, FMBR, anaerobic tower, Fenton, etc., effluent water quality is stable, easy to operate, high degree of automation, equipment can be customized according to customer needs appearance style, The equipment is widely used in domestic sewage, hospital sewage, new rural reconstruction sewage, aquaculture wastewater, slaughtering wastewater and various industrial wastewater
Water treatment capacity(m3/d) |
External dimensions: length*width*height(mm) |
Equipment weight(t) |
Operating power (kw) |
5 | 2500x1000x 1500 |
0.97 |
2.72 |
10 | 2500x 1500x 2000 |
1.65 |
2.72 |
20 | 5000x1500x 2000 |
2.5 |
3.1 |
30 | 5000x2000x 2000 |
2.9 |
3.85 |
40 | 6500x 2000x2000 |
4. 36 |
3.85 |
50 | 6500x 2000x2500 |
5.07 |
3.85 |
60 | 7500x2000x2500 |
5.58 |
4.55 |
70 | 7000x 2500x 2500 |
6.31 |
4.55 |
80 | 8000x 2500x2500 |
6.88 |
5.35 |
100 | 10000x 2500x2500 |
8.3 |
5.35 |
120 | 11500x2500x2700 |
9.65 |
8.6 |
150 | 12000x3000x2700 |
11.22 |
8.6 |
170 | 16000x2500x2700 (Two groups) |
12.26 |
8.6 |
200 | 20000x2500x2500 (Two groups) |
15.53 |
9.3 |
250 | 24000x2500x2700 (Two groups) |
17.3 |
12.8 |
300 | 24000x 3000x2700 (Two groups) |
20.05 |
12.8 |
LOGO customization | Supportable |
||
Outer packaging customization |
Supportable | ||
Appearance customization |
Supportable | ||
According to water sources, water quality, flow rate and ground area to design |
HengYuan Wastewater / sewage treatment equipment with AO,MBR,MBBR,SBR,FMBR etc technology , Our equipment which adopts the advanced Biological technology and the company's scientific research and engineering practice result, it can effectively remove BOD5,COD and NH3-N.The device is characterized by the stable performance, effective treatment, economical investment, automatic operation, convenience of maintenance and small occupying space. It also can be placed underground and overground based on client's requirement.
As the most efficient Wastewater / sewage treatment device, it is widely used in treating the sewage in the area of senior hotels, village districts and residential districts, etc. The water after treatment would meet the national emission standards.
Advantages:
1, Compact design, which is easy to transport.
2, Integrated device, no need construction, which is easy to be installed.
3, Full Automatic machine, which is easy to operate and maintain.
4, Can be fixed on underground, which can save room and earth.
5, Don't need additional construction, the total cost is small.
1. Q:Are you a factory or trading company?
A: HengYuan are a direct factory, we have rich experiences for manufacturing water treatment plants for more than 14 years.
2. Q:Where is your factory ? How can i visit there?
A: HengYuan factory is located in No.888 Leshan Road, Weicheng District, Weifang City, Shandong Province, China. It is about 2 hours from Qingdao airport. We can pick you up if you need, welcome to visit our factory.
3. Q: Do you have minimum order quantity request?
A: No minimum order, but it can get a discount if you order a large quantity.
4. Q: Do you have certificates?
A: Yes, we have ISO certificate.
5. Q: Can you meet my special requirements for my products?
A: Yes, we have a professional design team. Drawings can be provided according to your requirements.
6. Q:How do I buy your products?
A:You can provide us your water sources, water quality, flow rate and ground area (contact us for more details).
7. Q:How do I pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit of total valus by TT after signing the PI, 70% balance to be paid by TT before shipment..
8. Q:What is the delivery time?
A: It would largely depend on the quantity of order and the item you want.. Generally speaking, the delivery time will be within 4 to 6 weeks.
9. Q: How do you pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.
10. Q: How do you manufacture your equipment ?
A:Our machining technology includes laser/plasma cutting, automatic welding, CNC cutting and bending.
11. Q:How do we install after the equipment arriving destination?
A: Detailed installation drawing can be provided for you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
