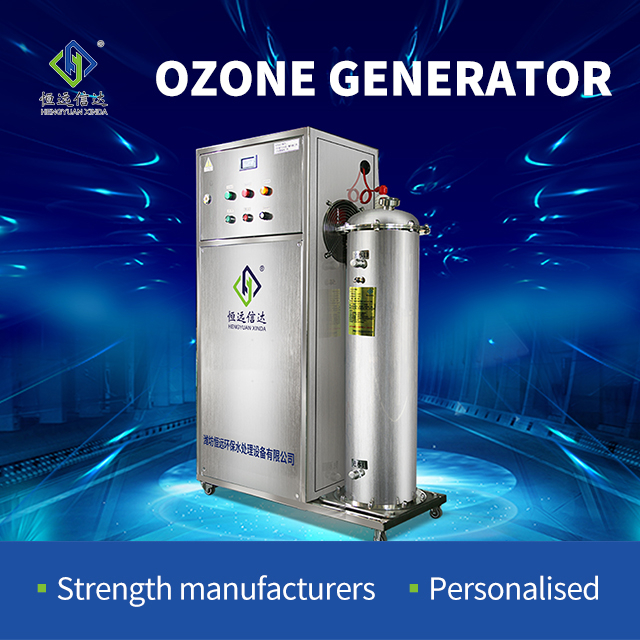

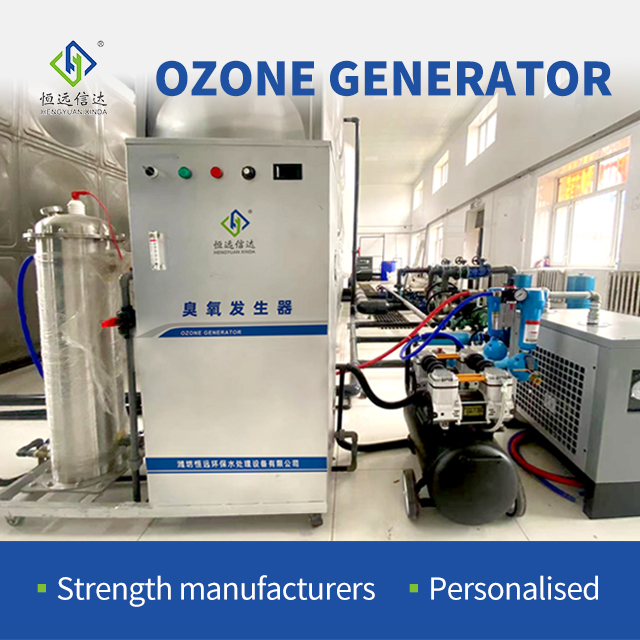

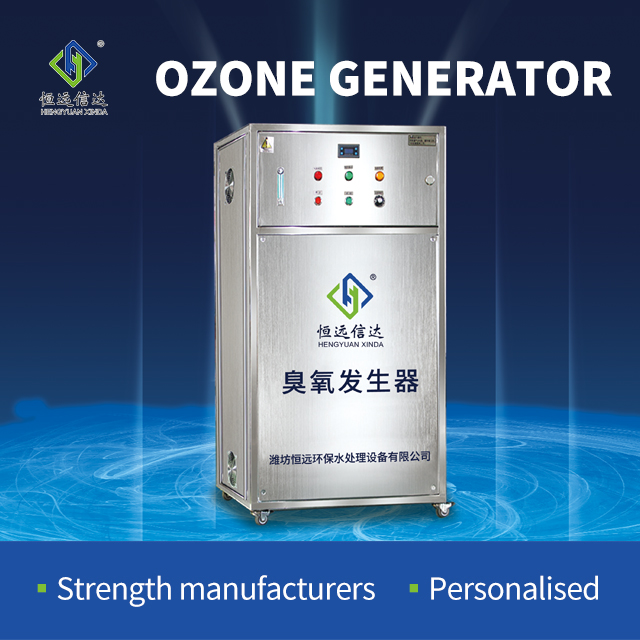

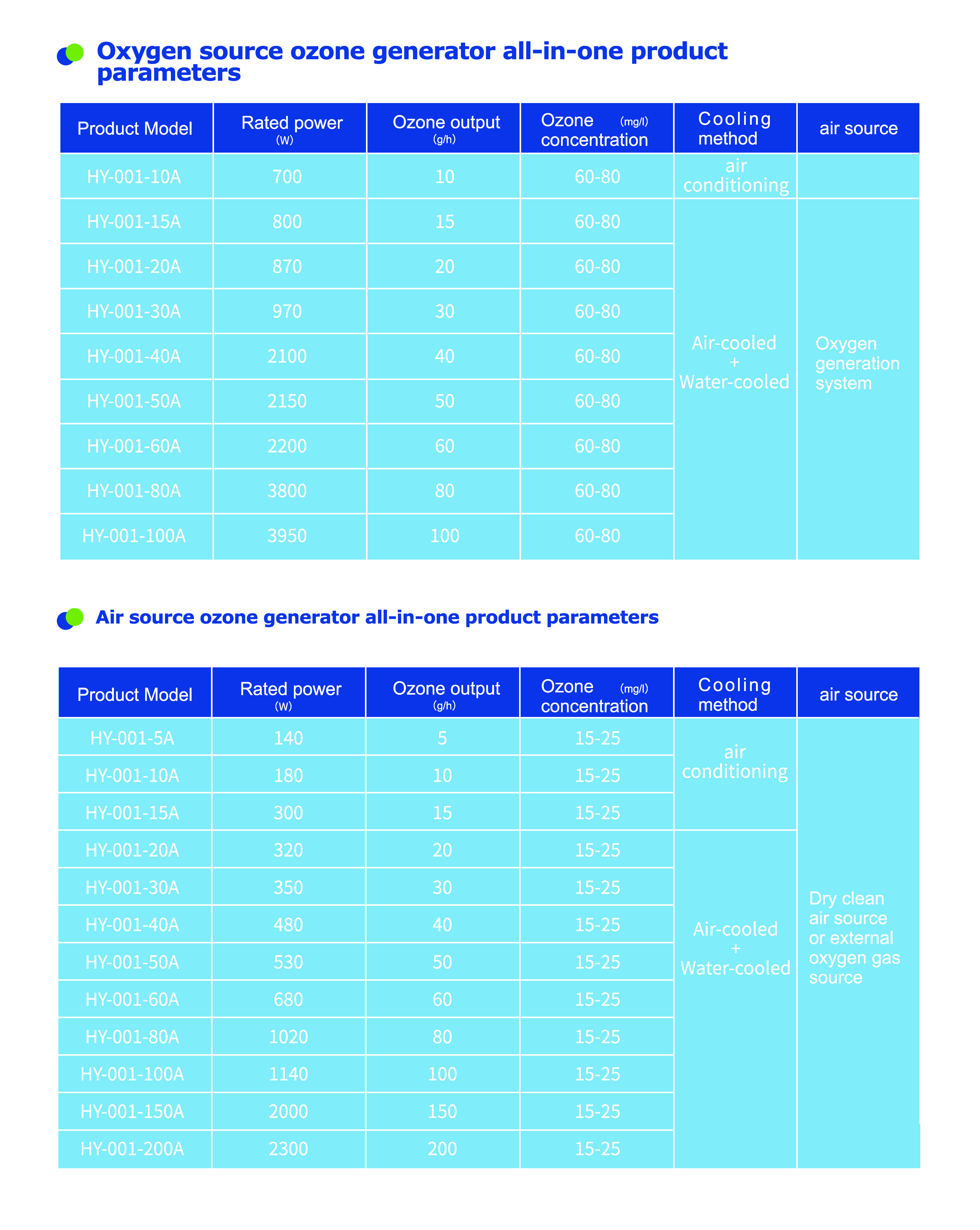

Hengyuan ozone generator system is a high-quality product made by our company by applying the advanced ozone generating technology in the ozone industry at home and abroad and refining it with great care. The whole system is composed of gas source pre-treatment system, ozone generation system, ozone power supply system, central control system and ozone gas application system. At present, the ozone output of our single machine is 0.2-100kg/h, and the concentration of ozone export can reach 20-150mg/L. Compared with other large-scale ozone equipments in China, it has the features of compact structure, small surface area, stable ozone operation and low cost of use.
Ozone generator preparation principle is the gap discharge method, the power supply unit to provide a high-voltage electric field and make the flow of oxygen through the ozone generator in this electric field. Ozone generator tank itself and the internal discharge chamber for the grounding pole, high-voltage electricity added to the insulator's metal electrodes, metal electrodes added to the outside of the insulating material, so that in the insulating material layer and the ozone generator tank between the grounding pole to form a high-voltage electric field, the oxygen through the high-voltage corona discharge is converted into ozone.

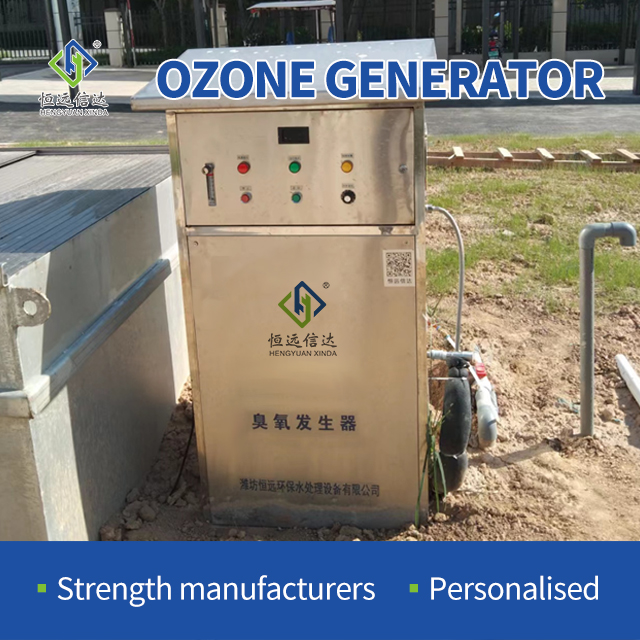

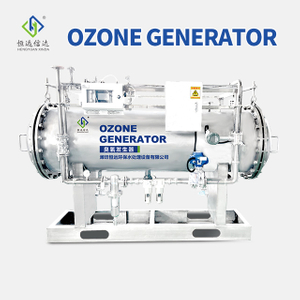

Hengyuan xinda Ozone generator room is installed horizontally, which can be directly placed in the room, or installed on the foundation fixed frame. The inside of the ozone generator can be inspected and maintained through the sealing plate with observation holes at both ends.
The service life of the ozone discharge chamber reaches more than 10 years;
High-voltage discharge special technology, targeted and adaptable, high ozone concentration, high yield; micro-gap high-efficiency and high-concentration discharge technology, reducing the cost of use.
Imported high boron glass and enamel discharge tube has high strength itself, excellent heat resistance, pressure resistance, self-cleaning performance, and convenient maintenance;
PLC automatic control technology, ozone production 10-100% adjustable, equipment with current, voltage, temperature, flow, gas pressure, operating conditions and a series of operational monitoring and protection functions, equipment performance is more stable, longer life.
